KOMATSU has succeeded in creating a machine that can keep up with the industry’s demands regardless of metal type or thickness, without having to sacrifice quality. The TFP 3 series plasma cutting machine is an innovative precision plasma cutter that features lower running cost, high performance, and higher productivity, achieving major improvements when cutting steel plate from 0.25in.-1.50in. when compared to conventional systems.
Our “TWISTER gas flow control” (Patent Pending) technology allows the disparity between upper- and lower-hole size to reduce substantially, creating a cleaner and closer tolerance on every hole. Our patented TWISTER gas technology (No.2689310, No.2997224) pushes a powerful downward spiral flow around the arc, reducing the amount of dross produced on every part.

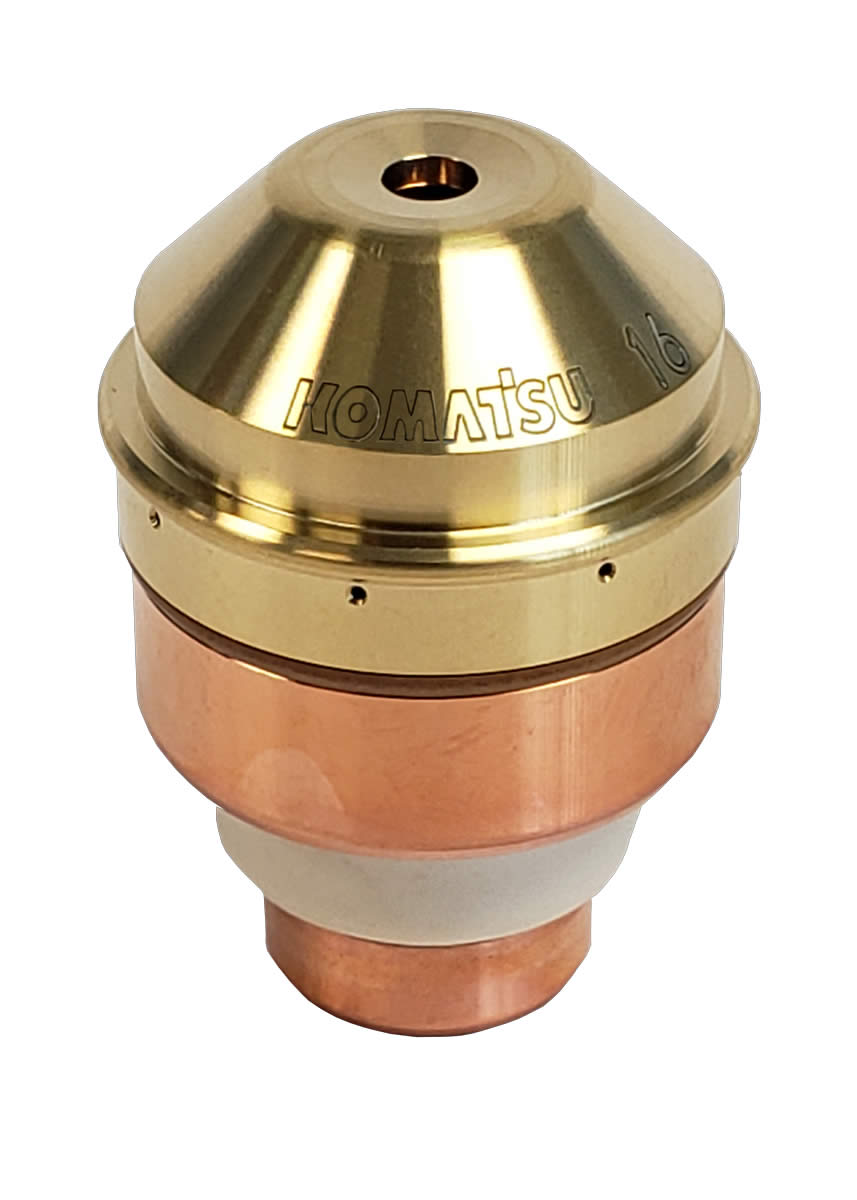

Thanks to our redesigned plasma torch, we have created a significant advance in plasma cutting technology. Our TFP 3 series machine model comes with an innovative torch design that allows you to go from Plasma to Oxyfuel cutting on the same torch in a matter of minutes. Our “Single Cartridge” consumable has an increased cut quality and accuracy that has been obtained thanks to its innovative nozzle design and new cutting process. The 1 piece set up reduces time and inventory from 6 individual parts to 1. It offers a 60% increase in consumable life when compared with our old style, that is more than double the productivity, with increased performance and less operator intervention.
Technology in the TWISTER TFP 3 & TFPL 6 Series is protected by US Patents, and other Patents Pending.
Specifications
Construction |
---|
• Unitized frame |
Table Size |
• 5’×10′ • 6’×12′ |
Cutting Speeds |
• 0 to 200″ (process and plasma power source may affect speeds) |
Maximum Traverse Speeds |
• 1000 IPM. |
Table Type |
• Zoned down draft table with KOMATSU “Push Pull” design. |
Rails |
• X & Y axis are Rack & Pinion + THK, heavy duty linear guide bearings. • Z axis is a Ball Screw & THK, heavy duty linear guide bearings. |
Motors / Gearbox |
• FANUC AC Servo motors and Gearboxes on all drives (O% Backlash). |
CNC Controller |
• Fanuc, Oi-Mf Plus CNC Control. 15” touch screen. 2MB NC Memory, 4GB Main memory, 64GB External device. • FANUC transfer tool via server. • USB memory |
Cutting Capability |
• 200-amp Plasma Unit- 16 Gauge to 1.25″ Mild Steel. • 300-amp Plasma Unit- 16 Gauge to 1.5″ Mild Steel. |
Quick Gas (Flame Cutting) |
• 2” piercing, 3” edge start from the side of the plate. |
Nesting Software |
• STRIKER CAD/CAM Smart Nesting Software, Model SS-NEST. NOTE: Original KOMATSU Nesting Software included with the equipment, as well as permanent license key. |
Machine Photos
![komatsu twister tfp 3 series plasma cutting 01](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-01.jpg)
![komatsu twister tfp 3 series plasma cutting 02](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-02.jpg)
![komatsu twister tfp 3 series plasma cutting 03](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-03.jpg)
![komatsu twister tfp 3 series plasma cutting 04](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-04.jpg)
![komatsu twister tfp 3 series plasma cutting 05](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-05.jpg)
![komatsu twister tfp 3 series plasma cutting 06](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-06.jpg)
![komatsu twister tfp 3 series plasma cutting 07](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-07.jpg)
![komatsu twister tfp 3 series plasma cutting 08](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-08.jpg)
![komatsu twister tfp 3 series plasma cutting 09](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-09.jpg)
![komatsu twister tfp 3 series plasma cutting 10](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-10.jpg)
![komatsu twister tfp 3 series plasma cutting 11](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-11.jpg)
![komatsu twister tfp 3 series plasma cutting 12](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-12.jpg)
![komatsu twister tfp 3 series plasma cutting 13](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-13.jpg)
![komatsu twister tfp 3 series plasma cutting 14](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-14.jpg)
![komatsu twister tfp 3 series plasma cutting 15](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-15.jpg)
![komatsu twister tfp 3 series plasma cutting 16](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-16.jpg)
![komatsu twister tfp 3 series plasma cutting 17](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-17.jpg)
![komatsu twister tfp 3 series plasma cutting 18](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-18.jpg)
![komatsu twister tfp 3 series plasma cutting 19](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-19.jpg)
![komatsu twister tfp 3 series plasma cutting 20](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-20.jpg)
![[original size] untitled](https://www.komatsupress.com/wp-content/uploads/2022/04/Komatsu-Twister-TFP-3-Series-Plasma-Cutting-21.jpg)
![Komatsu Twister TFP Series Plasma Cutter](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Cartridge-731x1024.jpg)
Available Upgrades
- Quick gas (flame cutting) is optional on all KOMATSU models, increasing cutting capabilities on mild steel to 2”
- “Power Up” upgrade. Converts your 200-amp plasma unit into a 300-amp unit. Increases your cutting capabilities to 1.5” on mild steel.
Special Features
- KOMATSU is a single source supplier: Machine Software, Plasma supply, torch, applications, Consumables, Service parts, Onsite-Service and Technical support. We are not an integrator.
- 2 in 1 torch design Plasma & Oxyfuel on the same torch, offered on all our TWISTER models. No dead zones on the table.
- Single cartridge consumable design, up to 60% more pierce life than conventional consumables (available only on 200A & 300A plasma units).
- Patented push pull exhaust system: Ensuring no smoke ever leaves the table.
- Patented 360 degrees torch collision detection system protection, with auto return to origin.
- Automatic Argon marking System.
- Patented “Quicksilver” process, clean cut stainless and aluminum up to 1″
- Automatic “Anti-Spatter” system.

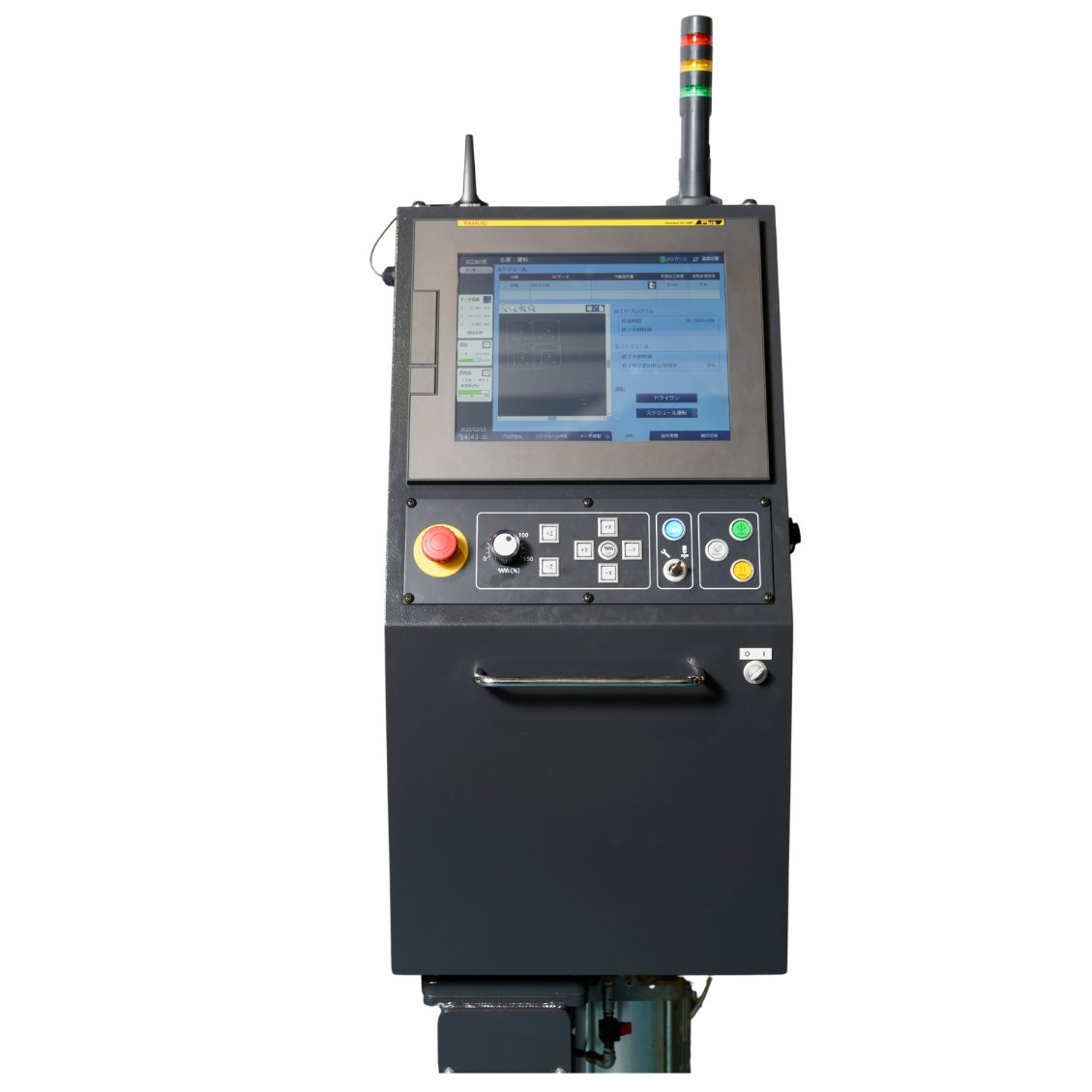

- 15” Fanuc Touch Screen Display, iH-Pro.
- Real time process data on display.
- Universal design concept.
- CCD Camera, adjust & improve positioning while looking at monitor.
- Barcode reader scanner included. One touch job loading and registration.
Part Photos

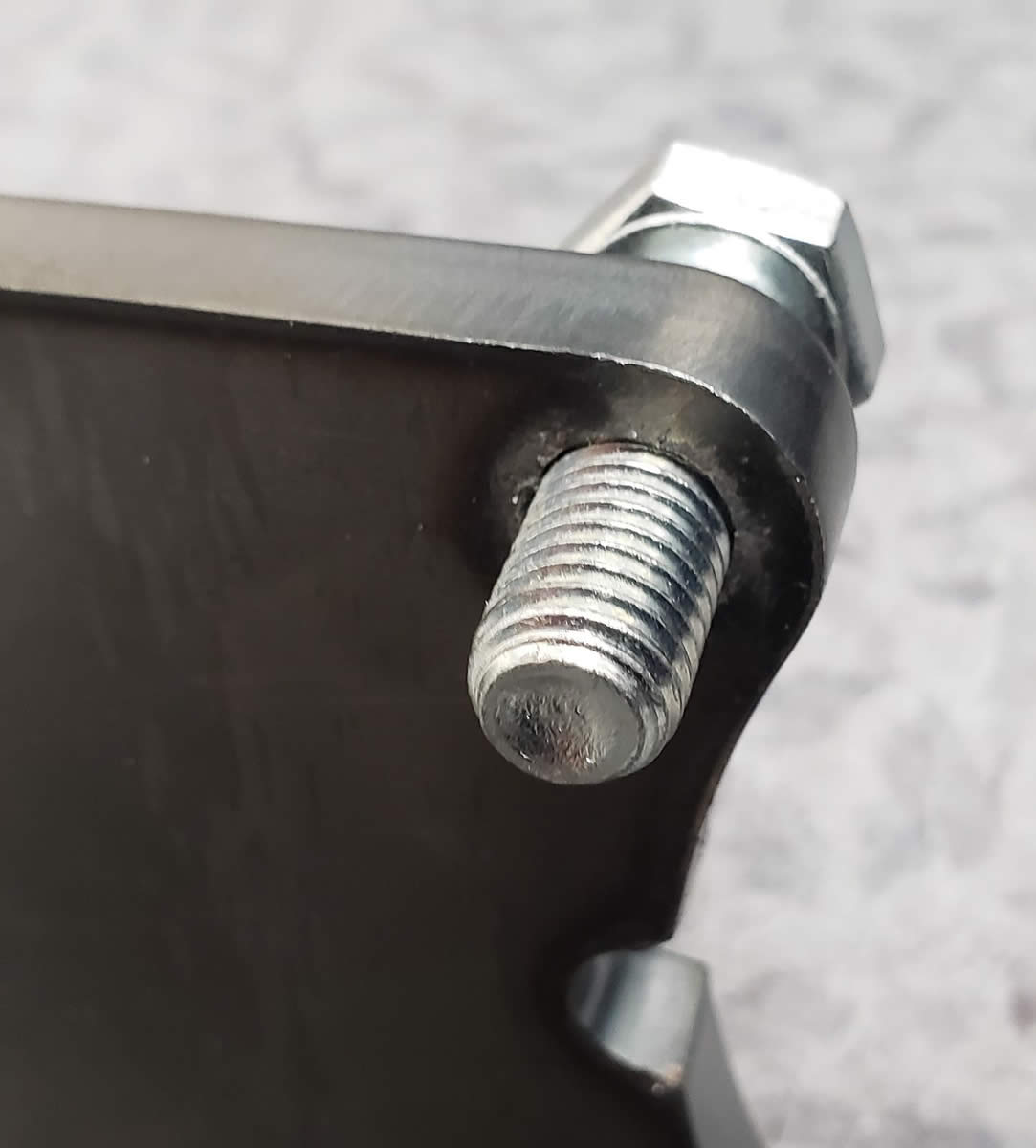

![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-01-271x300.jpg)

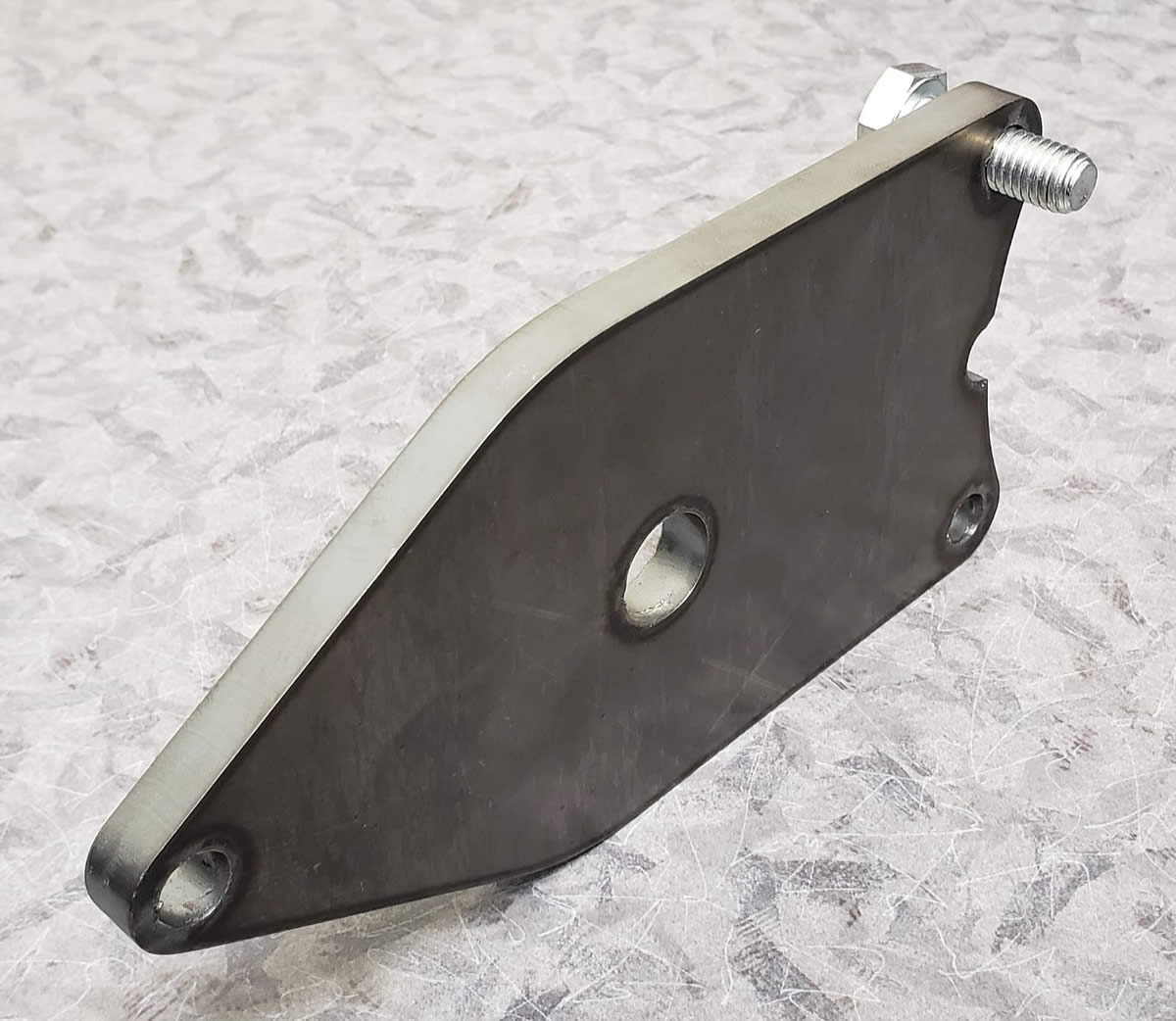

![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-02-300x261.jpg)

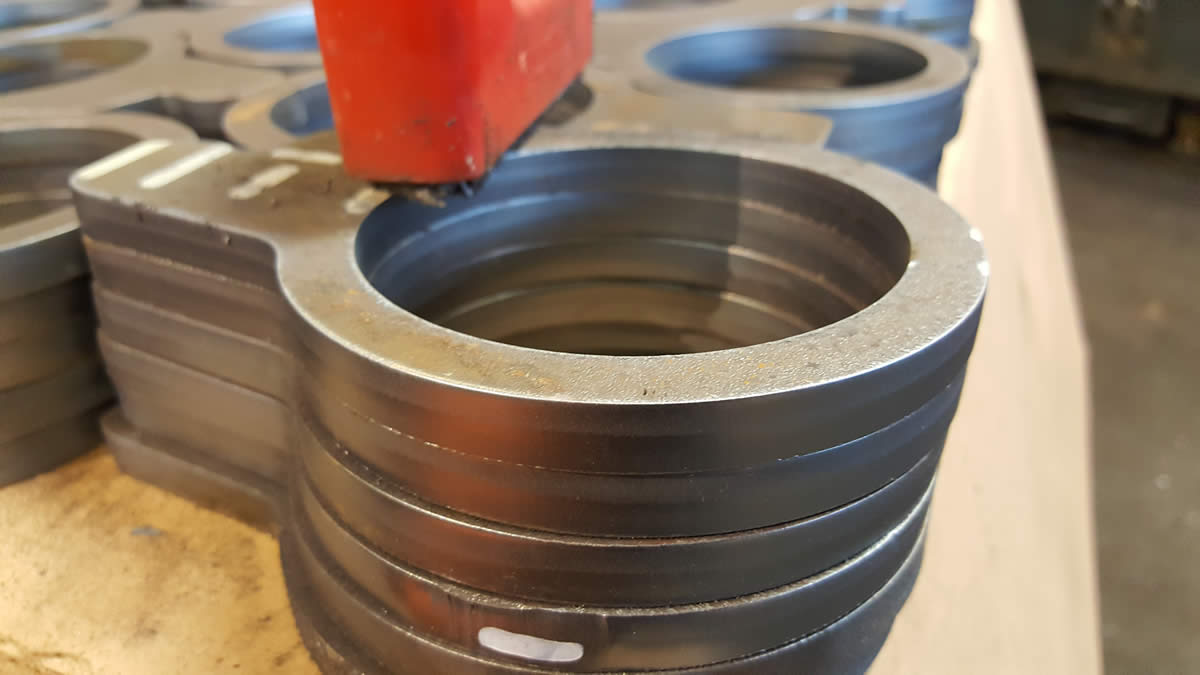

![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-03-300x169.jpg)

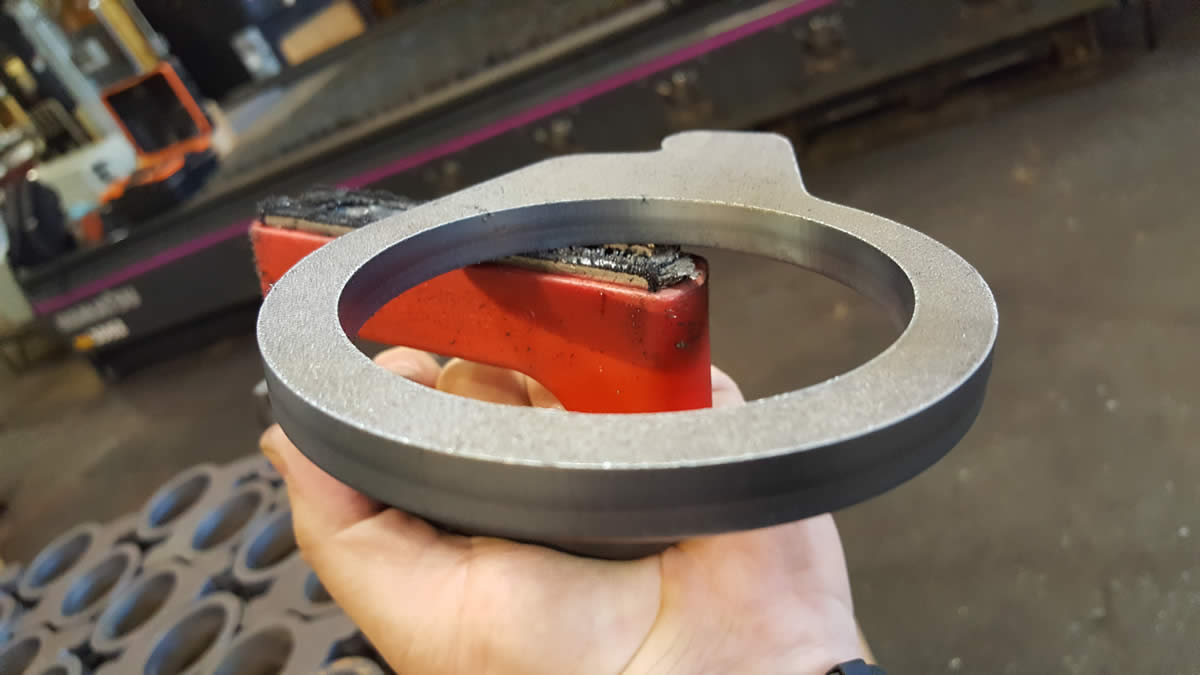

![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-04-300x169.jpg)

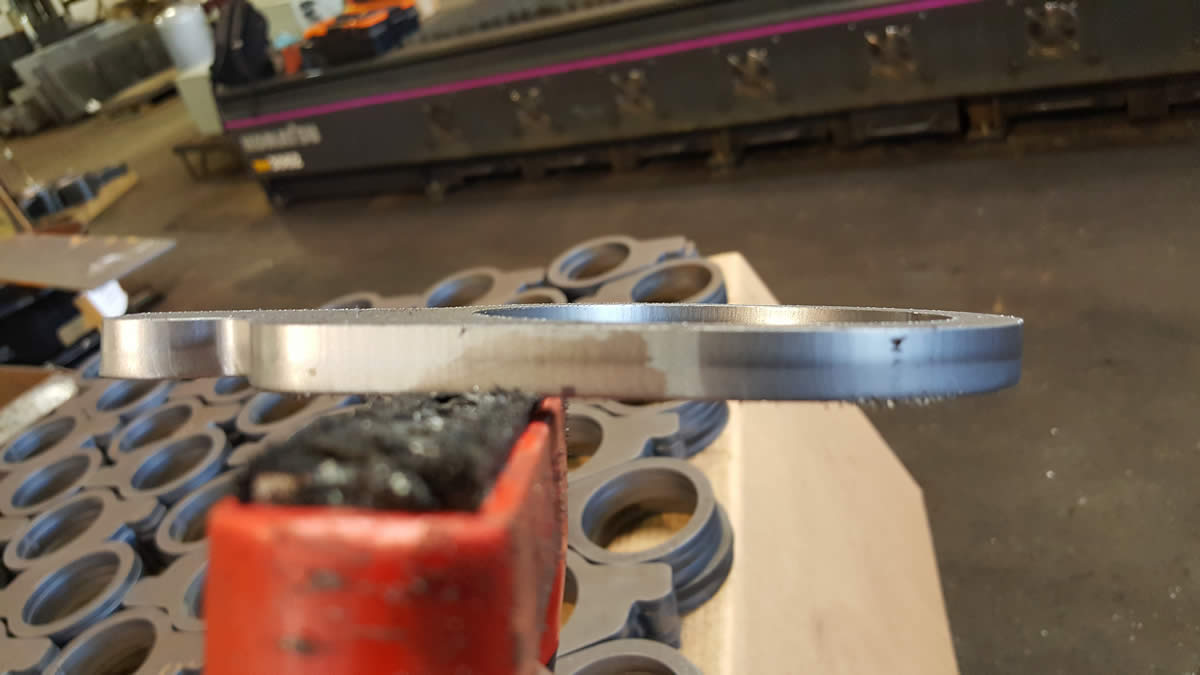

![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-05-300x169.jpg)

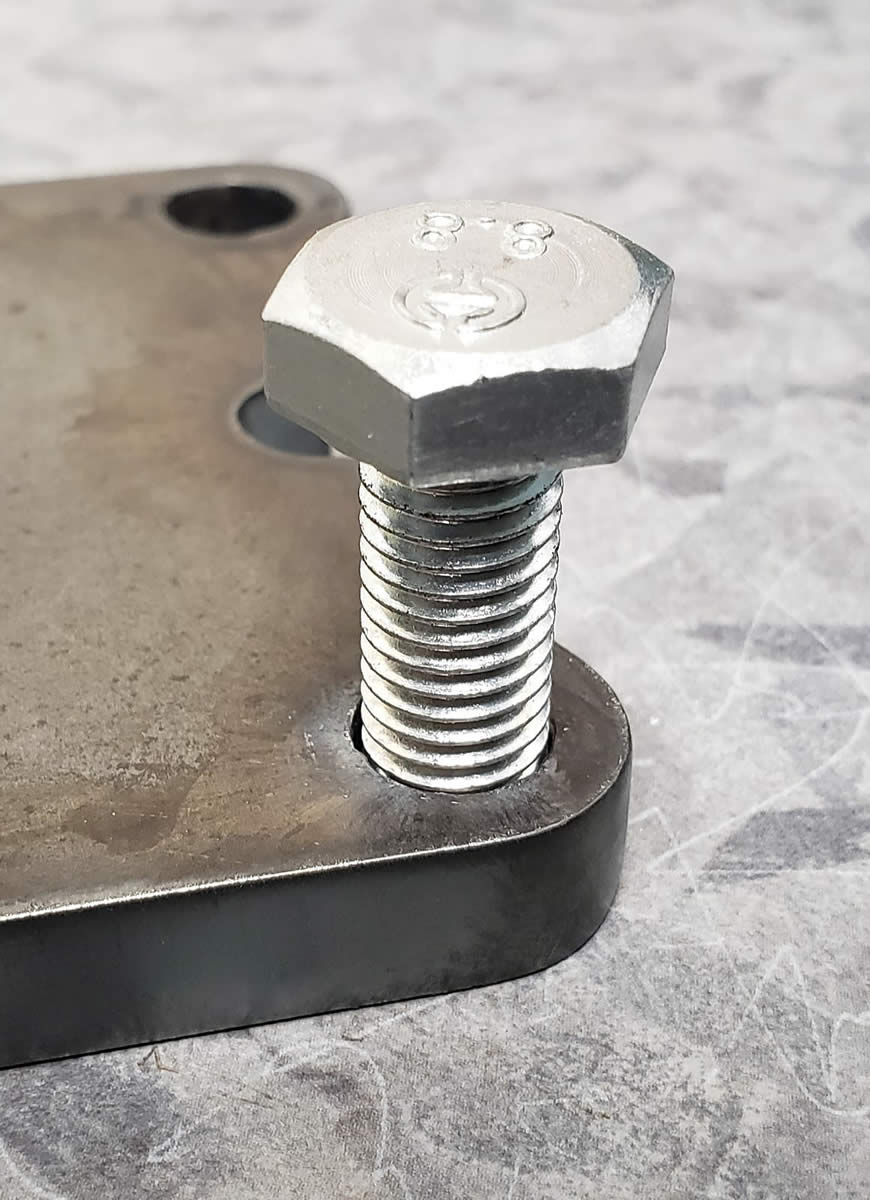

![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-06-218x300.jpg)

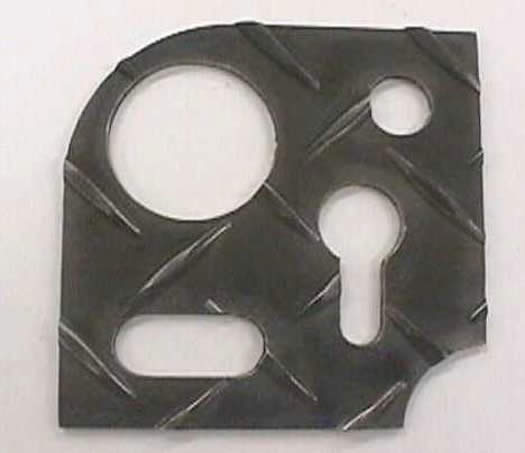

![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-07-300x259.jpg)

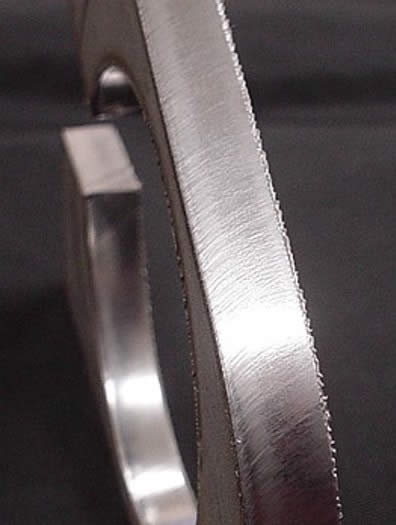

![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-08-226x300.jpg)
![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-09.jpg)
![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-10.jpg)
![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-11.jpg)
![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-12.jpg)
![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-Oxyfuel-process.jpg)

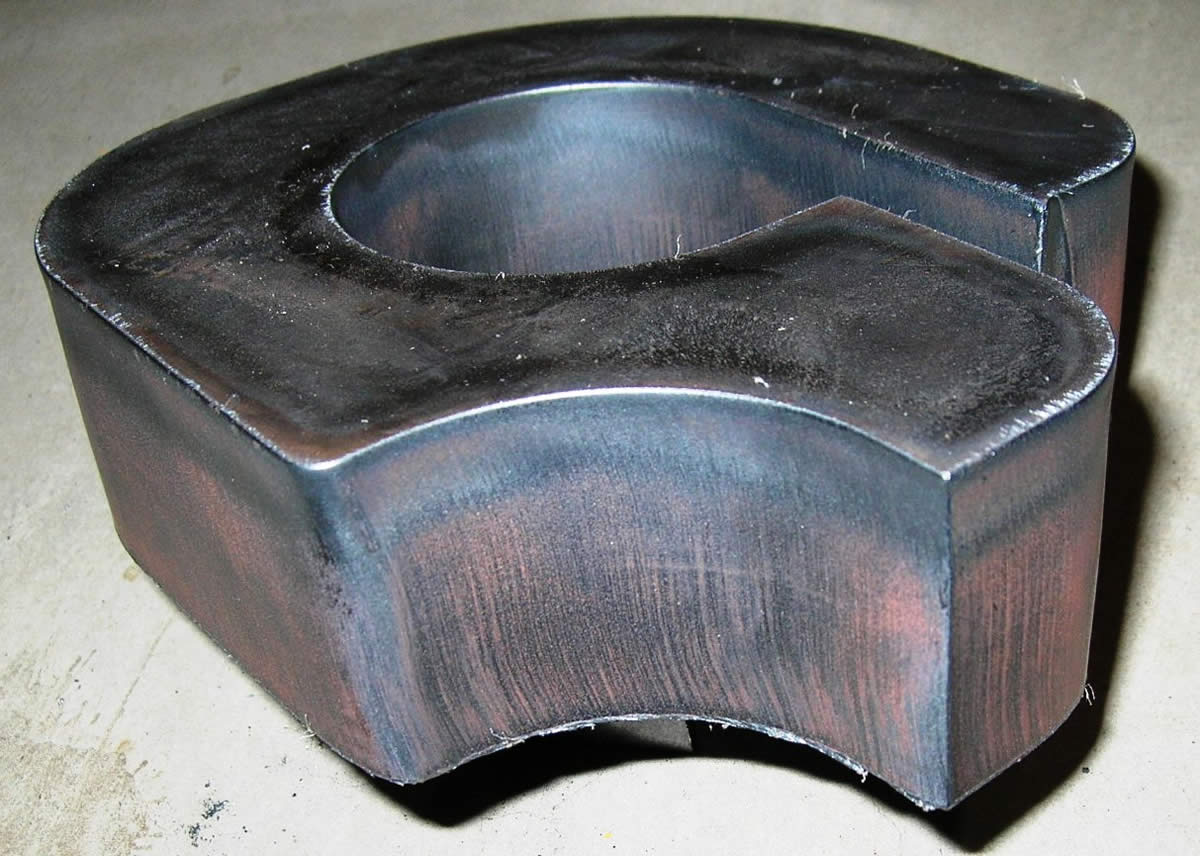

![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-OXYFUEL-1024x730.jpg)
![Komatsu Twister TFP Series Plasma Cutter Part](https://www.komatsupress.com/wp-content/uploads/2020/04/Komatsu-Twister-TFP-Series-Plasma-Cutter-Part-OXYFUEL2.jpg)
Included with purchase
- KOMATSU complete cutting table system (unitized frame design).
- Striker CAD/CAM Smart Nesting Software, SS-NEST.
- (NOTE: Original KOMATSU Nesting Software included with the equipment, as well as).
- Consumable Starter kit.
- 2 Year warranty on all machine components under normal working conditions.
- Installation & training (1 week).
