The TFPL 6 Series is a precision plasma cutting machine that features lower running cost, high performance and higher productivity, achieving major improvements when cutting steel plate from 0.25in.-2.00in. when compared to conventional systems.
Our single cartridge consumable design capable of 500A (100kW) has a 50% reduction in temperature, an improved coolant flowrate and speed, up to 2.5 times higher than conventional models. Thanks to its “Dual-Cooling system design (Patent pending), both the nozzle and electrode are cooled individually, thus extending the life of the consumable up to 3 times longer than conventional systems.
Its modular power output design (US Patent No. 8723072) allows the equipment to continue to run even if one of the modules has failed. Allowing the user to continue work without any downtime.
Our TWISTER Blade models come with the patent “Twister gas control system”, ensuring optimum gas flow based on configuration, significantly reducing any disparity between upper- and lower-hole size. (US Patent No.6222154).
Technology in the TWISTER TFP 3 Series, and TFPL 6 Series is protected by US Patents, and other Patents Pending.
Specifications
| Table Construction |
|---|
| • Modular design, bridge and rails. |
| Table Size |
| • 8’x20′ • 8’x40′ • 10’x20′ • 10’x40′ |
| Cutting Speeds |
| • 0″ to 200″ (Process and plasma power source may affect speeds) |
| Maximum Traversal Speeds |
| • X axis, 787 IPM. • Y axis, 1575 IPM. • Z axis, 7871 IPM. |
| Table Type |
| • Zoned down draft table with KOMATSU “Push Pull” design.(Table not included) |
| Rails |
| • X & Y, RACK & PINION + THK, heavy duty linear guide bearing. • Z axis is a Ball Screw & THK, heavy duty linear guide bearing. |
| Motors / Gearboxes |
| • FANUC AC Servo motors and Gearboxes on all drives (O% Backlash). |
| CNC Controller |
| • Fanuc, Oi-Mf Plus CNC Control. 15” touch screen. 2MB NC Memory, 4GB Main memory, 64GB External
device. • FANUC transfer tool via server. • USB memory |
| Cutting Capability |
| • 200-amp Plasma Unit- 16 Gauge to 1.25″ Mild Steel. • 300-amp Plasma Unit- 16 Gauge to 1.5″ Mild Stee. • 500-amp Plasma Unit-16 gauge to 2” Mild Steel. |
| Quick Gas (Flame Cutting) |
| • 3” piercing, 4” edge start from the side of the plate. |
| Nesting Software |
| • STRIKER CAD/CAM Smart Nesting Software, Model SS-NEST NOTE: Original KOMATSU Nesting Software included with the equipment, as well as permanent license key. |
| Available Upgrades |
| • Quick gas (flame cutting) is optional on all KOMATSU models, increasing cutting capabilities on mild steel to 3″ • “Power up” upgrade. Converts your 200-amp plasma unit in too a 300-amp unit or 525-amp. Increase amp and 300-amp plasma units. STRIKER CAD/CAM Smart Nesting Software, Model SS-NEST. |

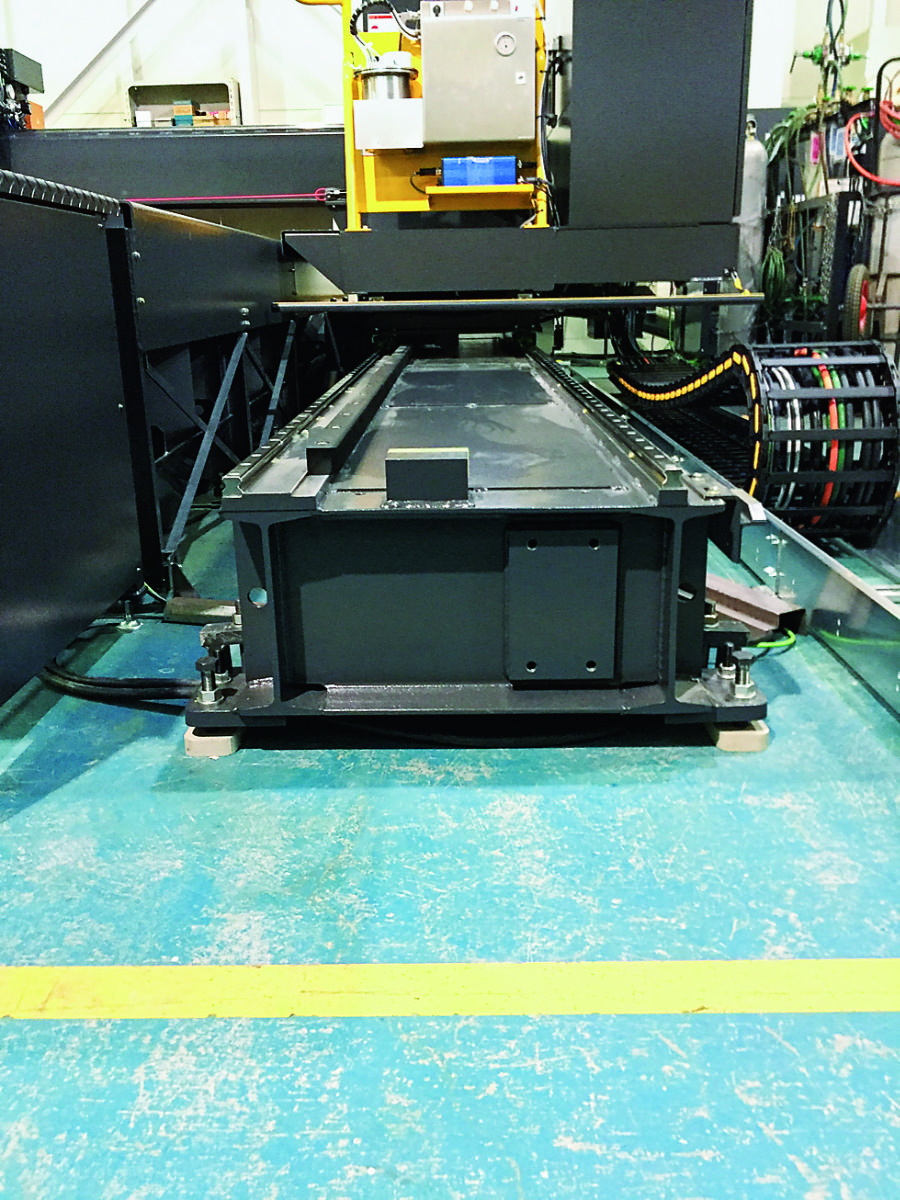

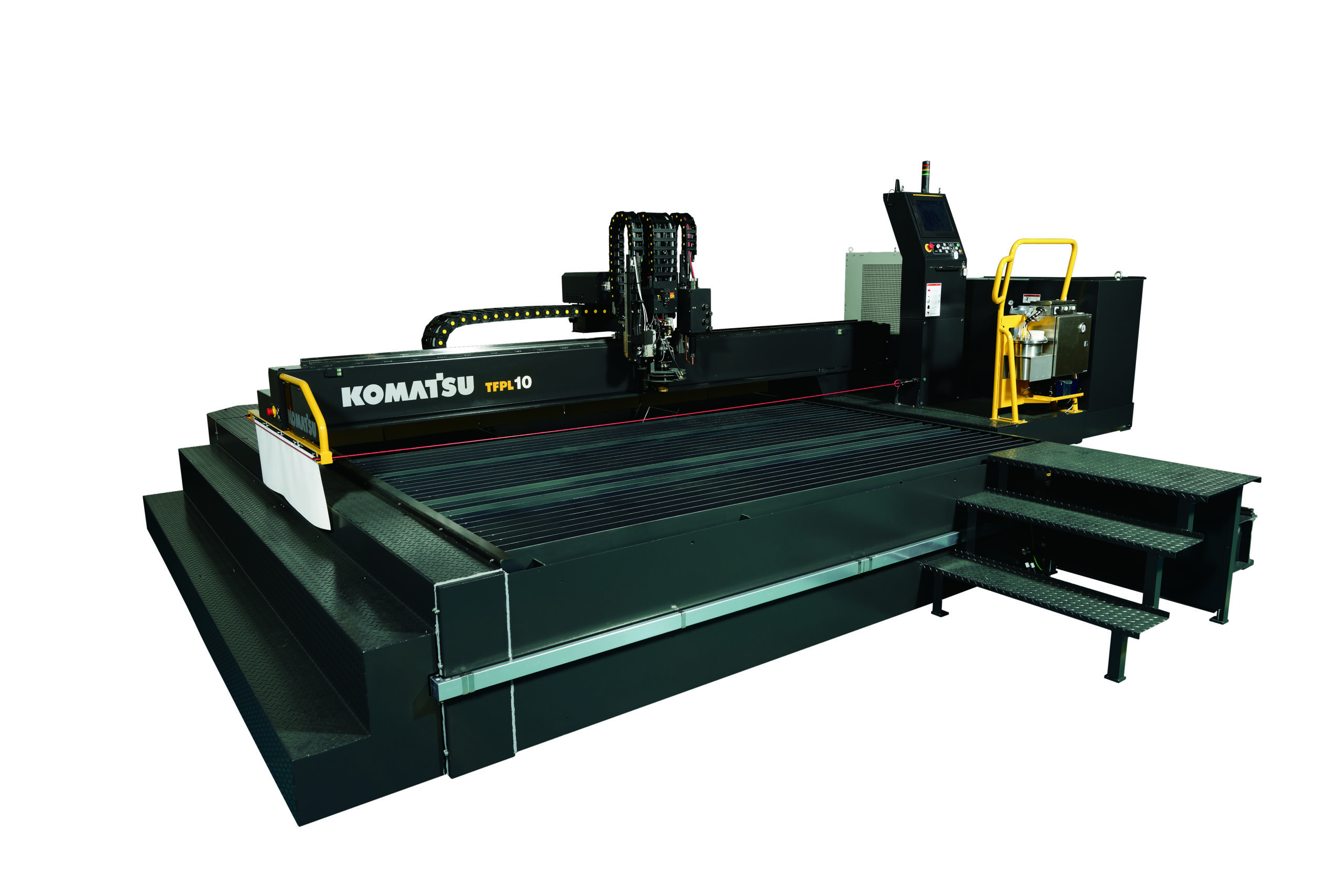

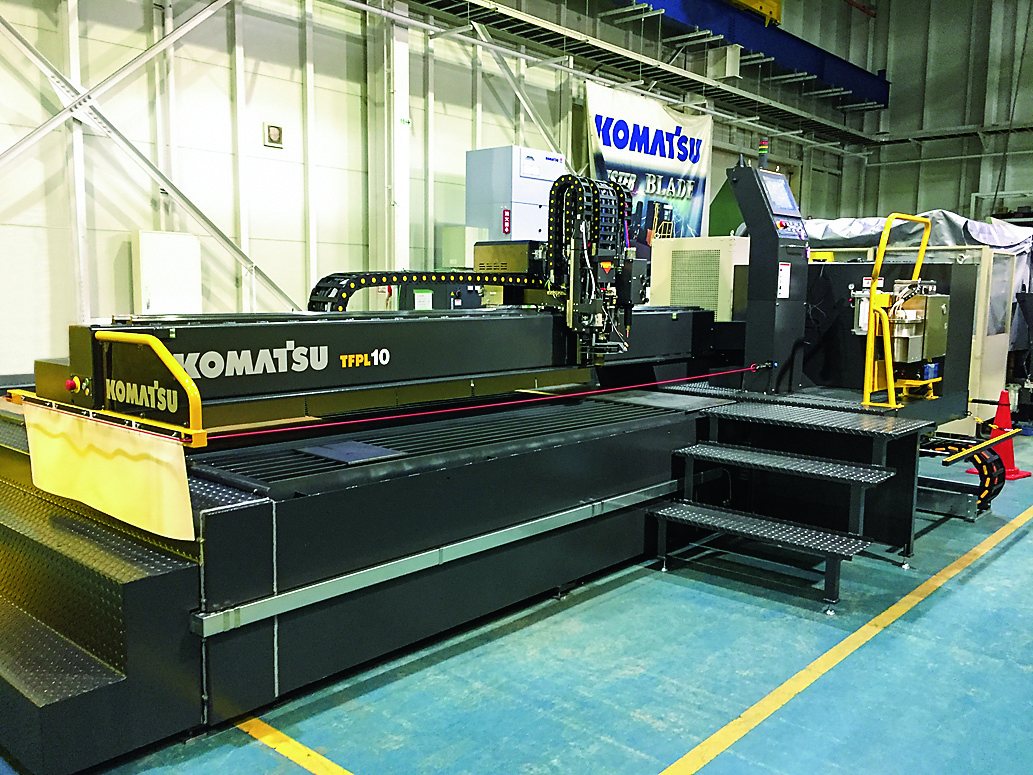

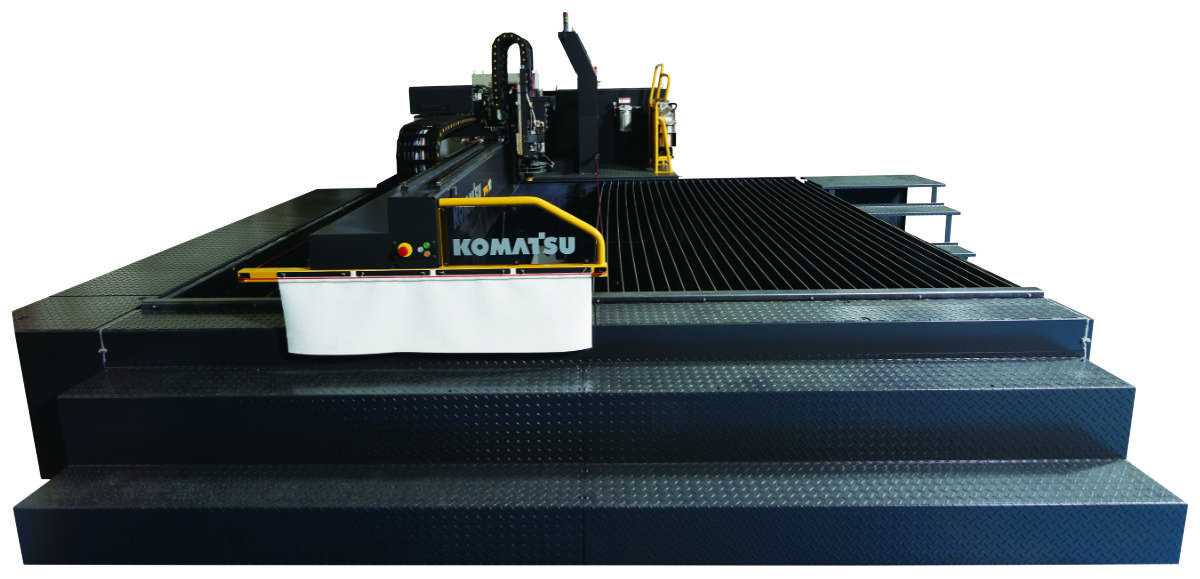

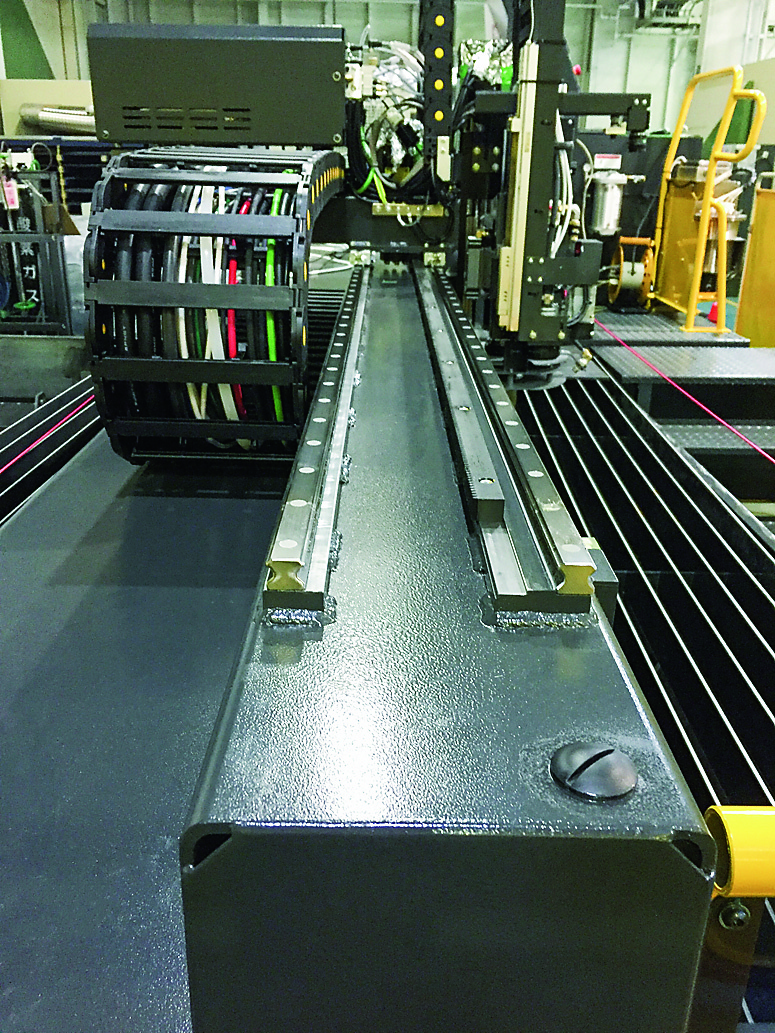

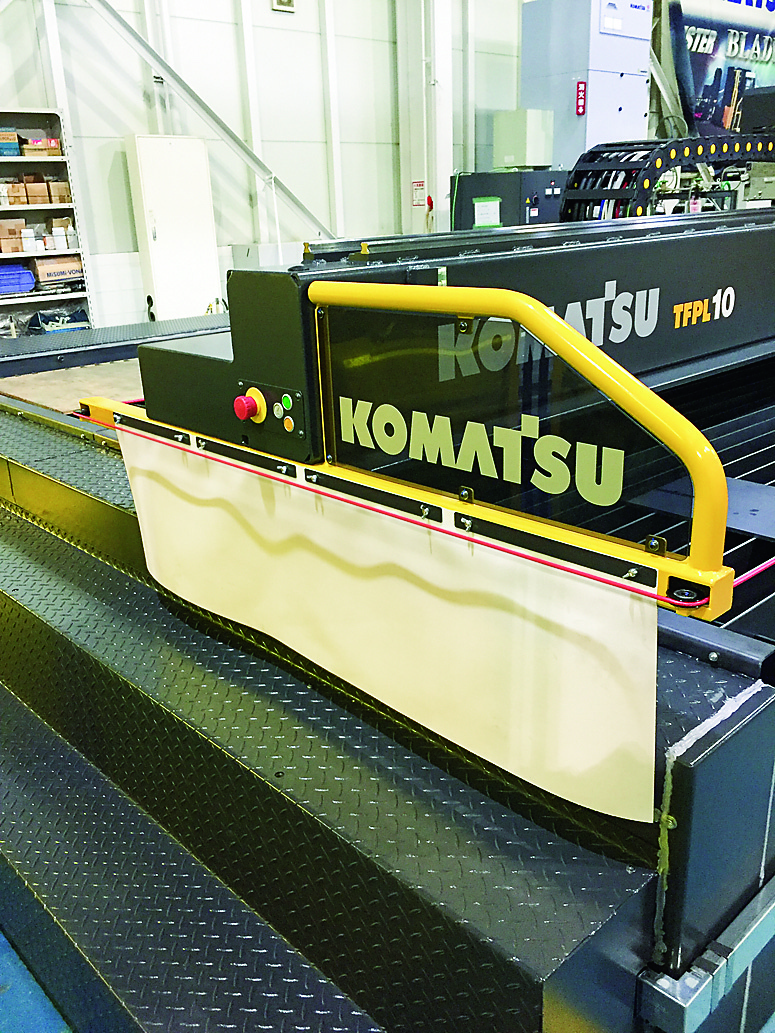

Machine Photos
Special Features
- KOMATSU is a single source supplier: Machine Software, Plasma supply, torch, applications, Consumables, Service parts, Onsite-Service and Technical support. We are not an integrator.
- 2 in 1 torch design offered on all our TWISTER models. Plasma & Oxyfuel on the torch. No dead zones on the table.
- Single cartridge consumable design, up to 60% more pierce life than conventional consumables (available only on150A & 300A plasma units).
- Patented push pull exhaust system: Ensuring no smoke ever leaves the table.
- Patented 360 degrees torch collision detection system protection, with auto return to origin.
- Automatic Argon marking System.
- Patented “Quicksilver” process, clean cut stainless and aluminum up to 1″
- Automatic torch cleaner.
- Automatic “Anti-Spatter” system.

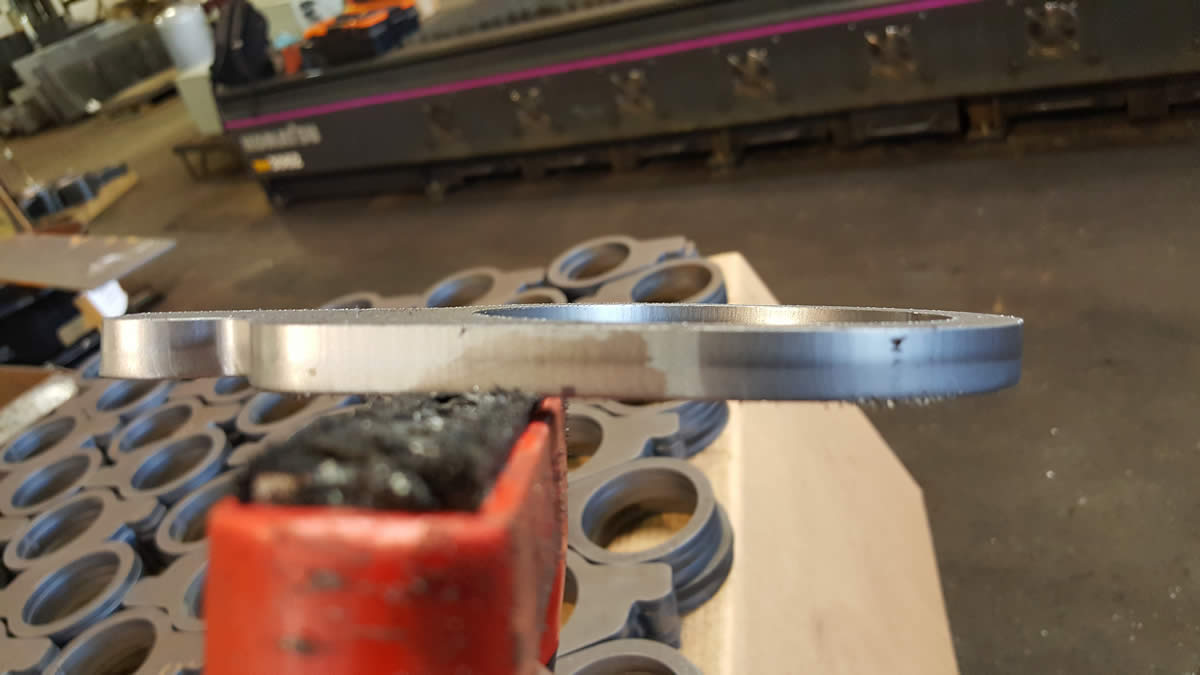

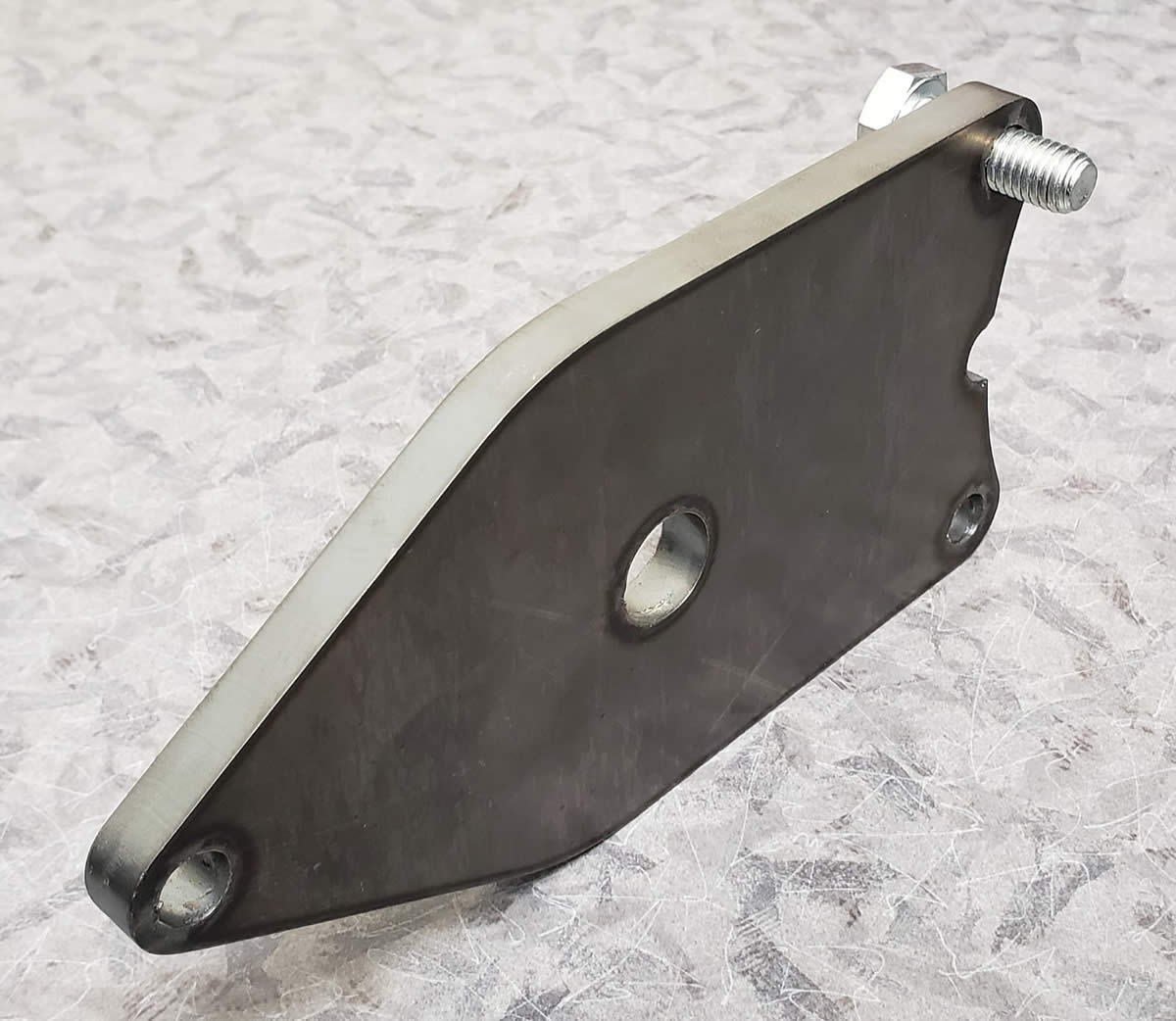

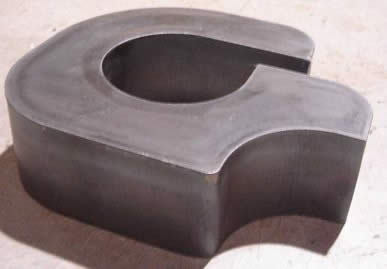

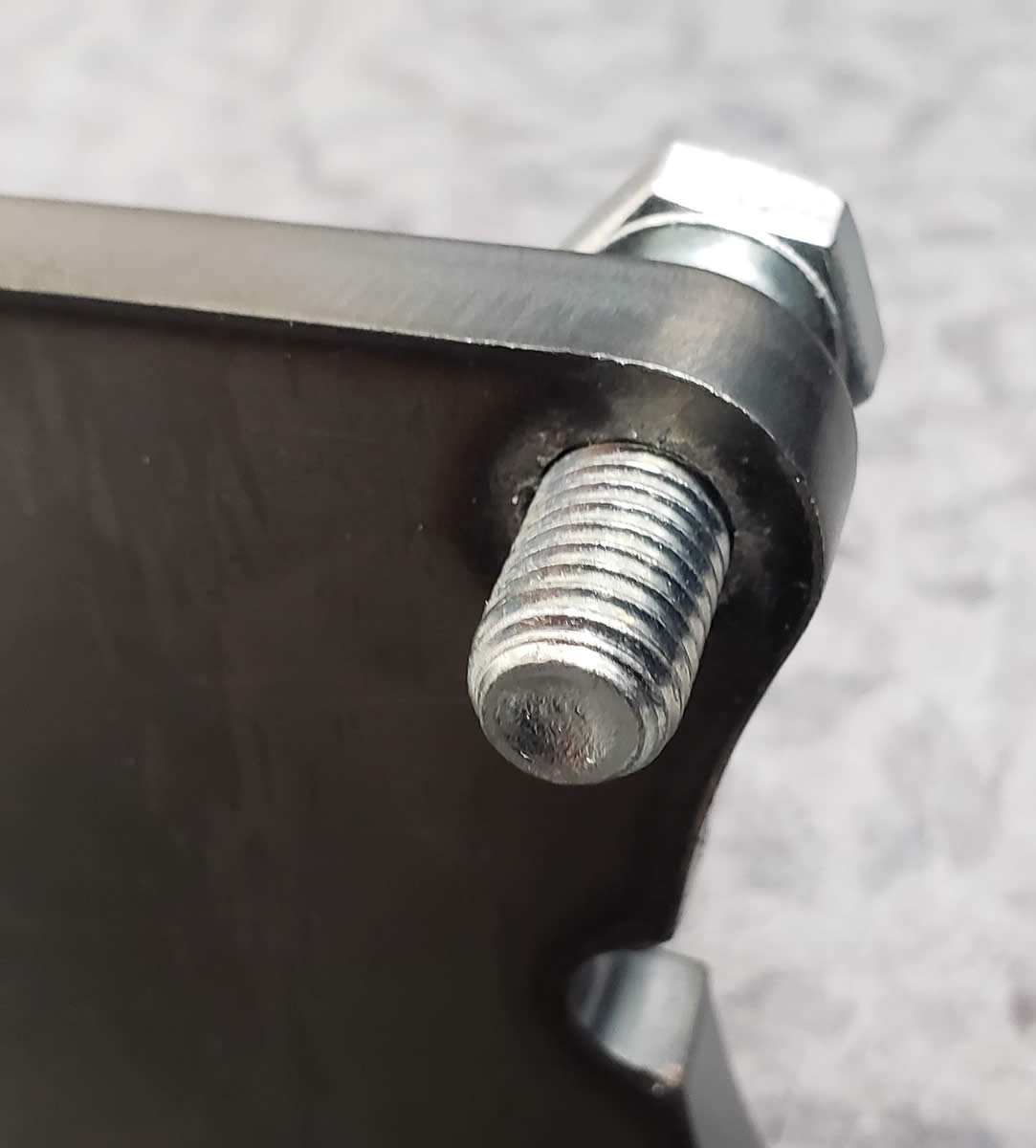

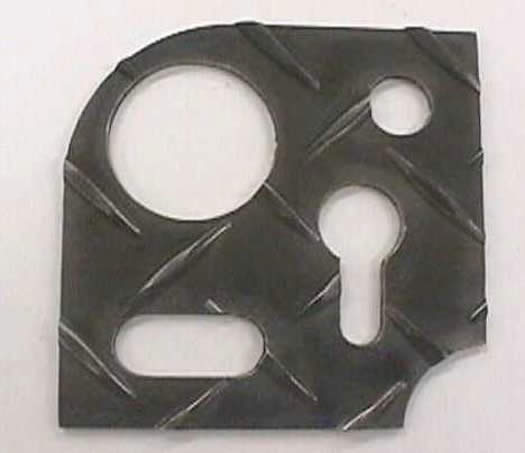

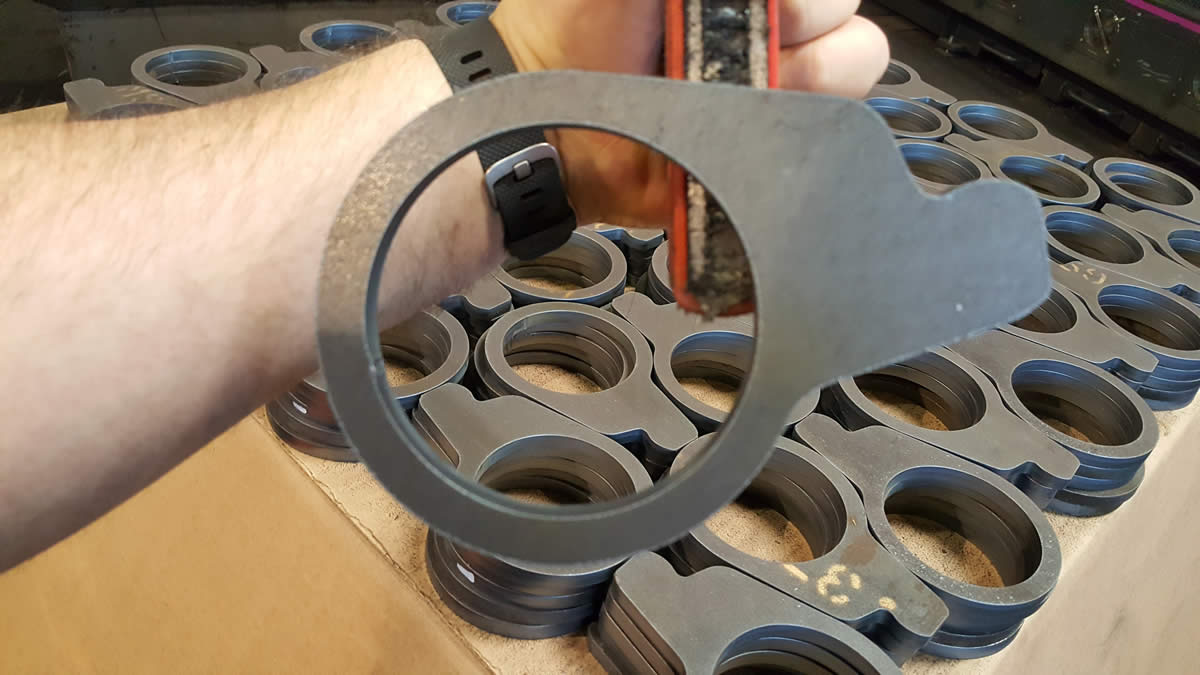

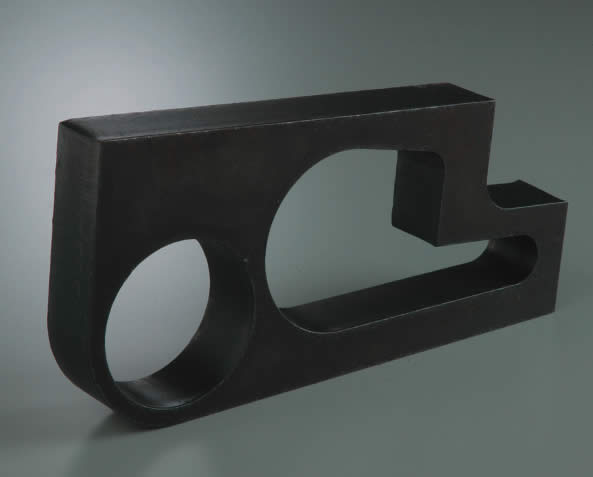

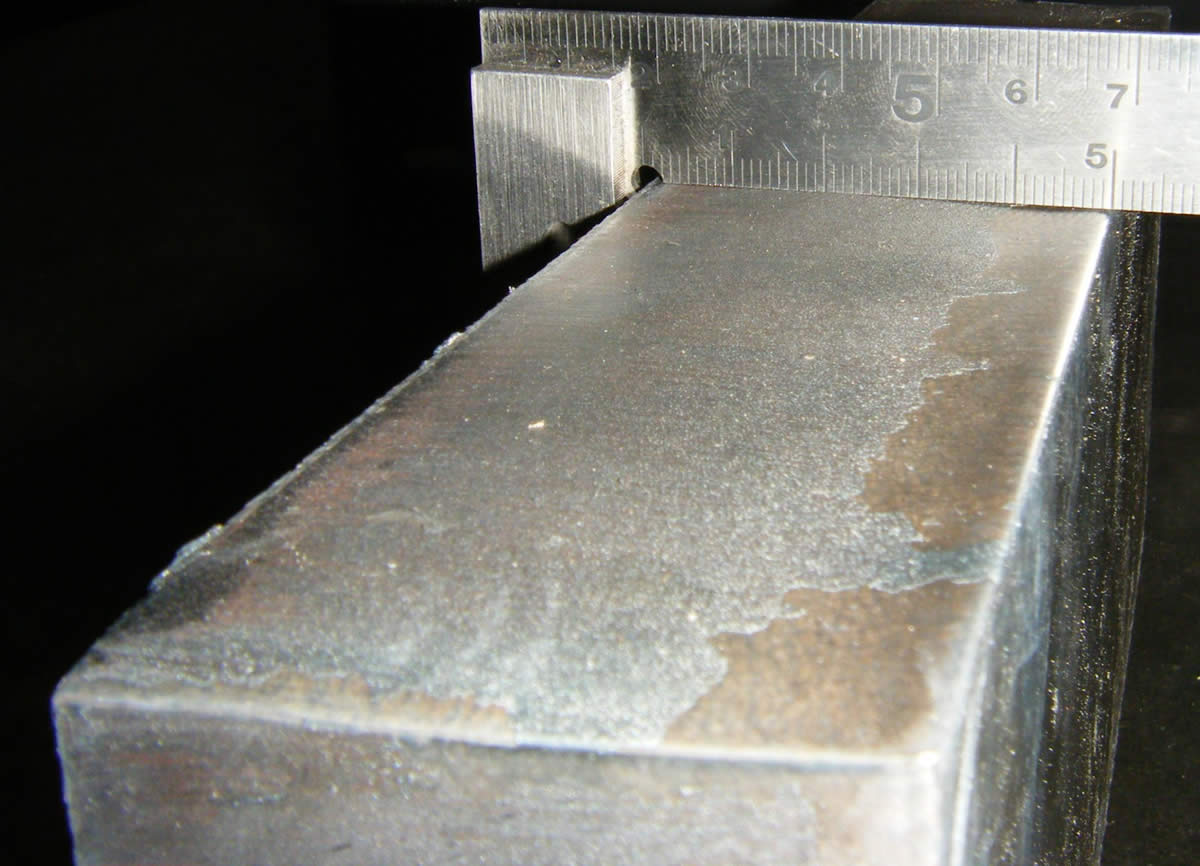

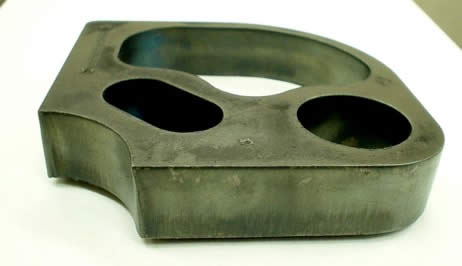

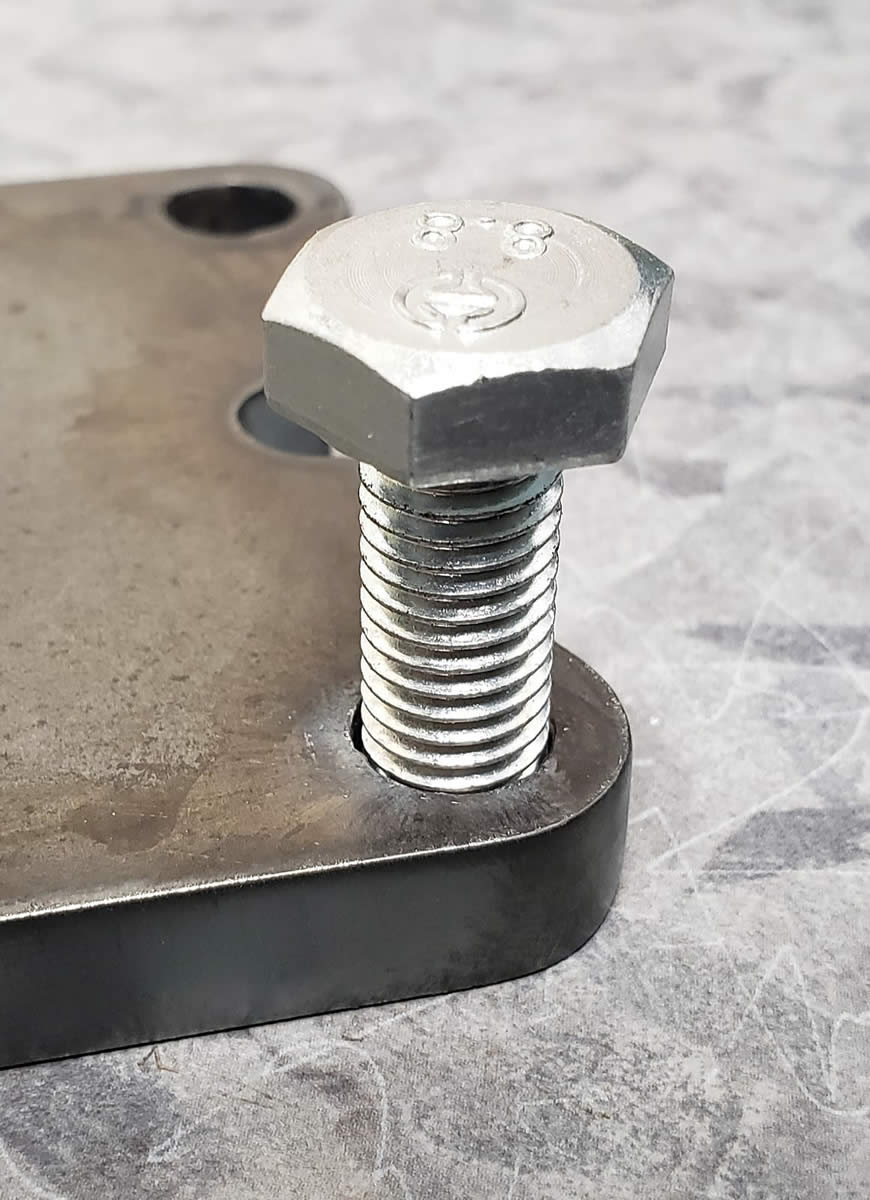

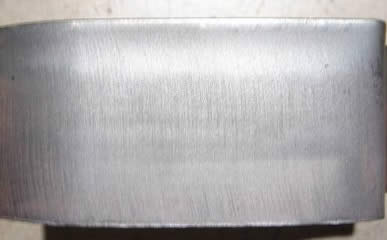

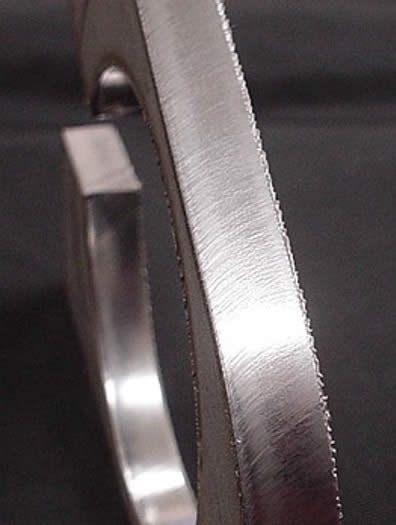

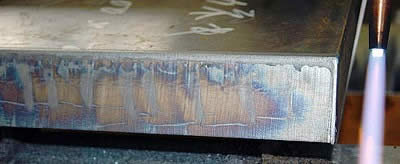

Part Photos
Included with purchase
- KOMATSU Nesting software (PathMaster, RasorNest, Transfer tool data link software).
- X, Y & Z linear carriage & rack pinion rails.
- Complete modular plasma system with torch assembly.
- Fanuc CNC Control system.
- KOMATSU Down draft exhaust system complete assembly kit (Cutting table is optional).
- Installation & training (2 weeks).
- Consumable Starter kit (Approx. 1-month stock).
- 2 Year warranty on all machine components under normal working conditions.
