The H2FM Progressive servo press features a high rigidity frame and advanced technologies for performance and flexibility.

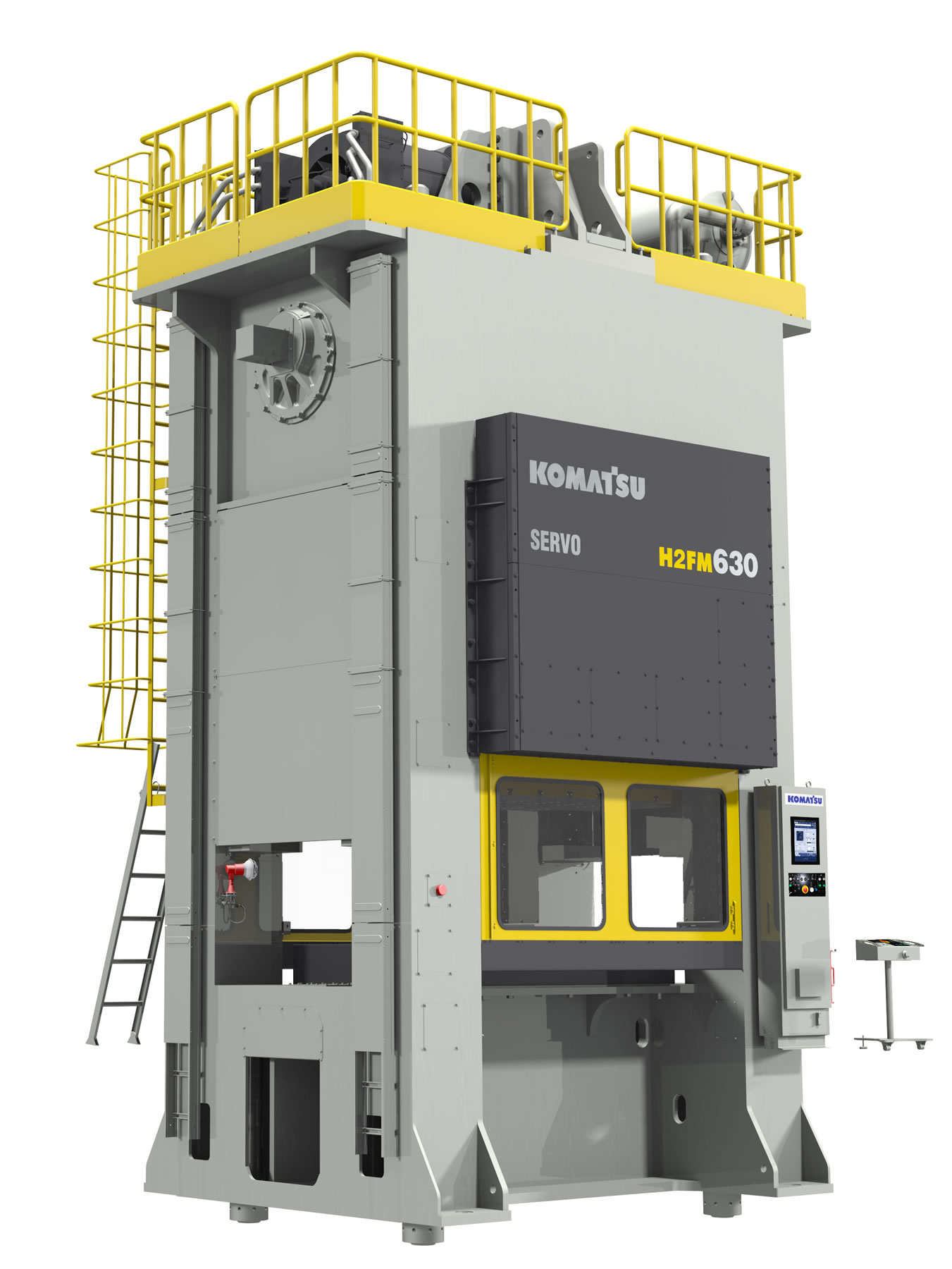

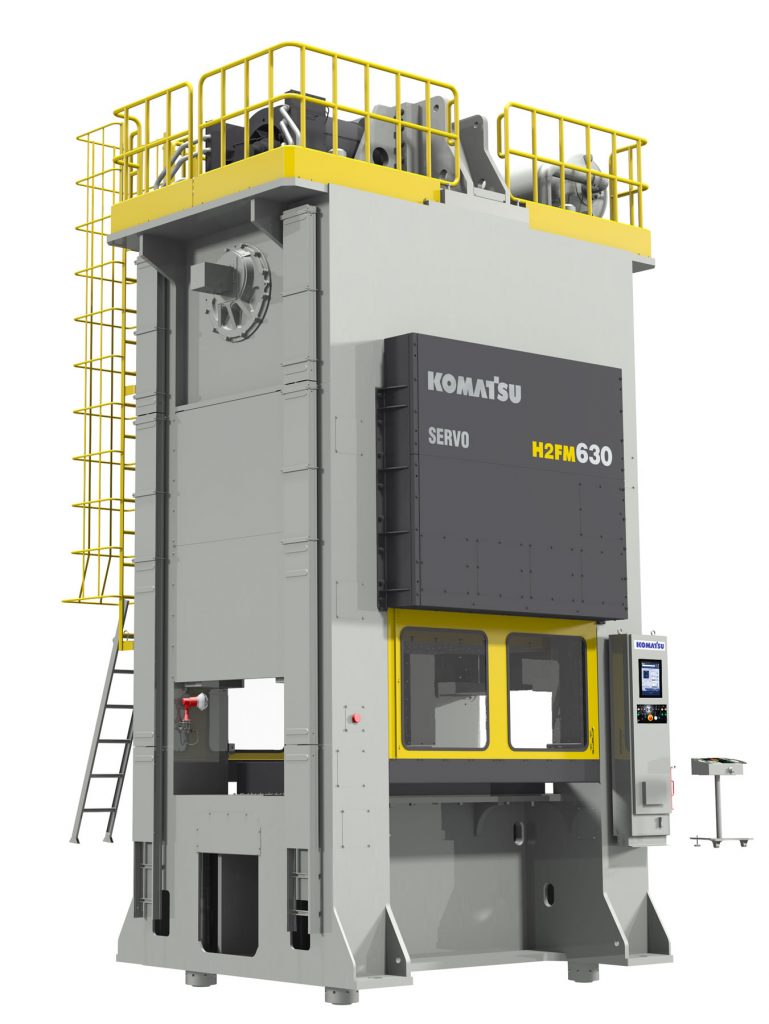

The H2FM Next-Generation Progressive Servo Press
Productivity
Designed for Superior Flexibility and Accuracy. New high torque liquid cooled servo motor, minimal reduction of working energy / rating point at maximum pendulum speed for improved productivity.
Environment
Komatsu’s proven capacitor electricity storage system reduces power source capacity and saves energy.
Maintenance & Management
Remote Monitoring system continually checks machine performance as well as inter-connected peripherals. All data stored and accessed through the internet.
Formability
High rigidity frame of slide and bed deflection at 0.001”/ft left to right and front-to-back enables high accuracy forming.
Operability
Large-sized touch panel display improves operability.
Specifications
Komatsu H2FM Servo
| Capacity | ton | 400 |
|---|---|---|
| Suspension Points | pcs. | 2 |
| Main Motor | kW | 325 |
| Stroke Length | mm | 350 |
| Rating off BDC | mm | 12.7 |
| Die Height | mm | 600~750 |
| Slide Adjust | mm | 250 |
| Slide min .size (LRxFB) | mm | 2450 x 1300 |
| Rotation Max. SPM | spm | 70 |
| Pendulum Max. SPM | spm@150mm | 88 |
| spm@125mm | 94 | |
| spm@100mm | 100 | |
| spm@80mm | 106 | |
| Bed deflection rate | mm / mm | 1/12000 |
| Capacity | ton | 630 |
|---|---|---|
| Suspension Points | pcs. | 2 |
| Main Motor | kW | 495 |
| Stroke Length | mm | 400 |
| Rating off BDC | mm | 12.7 |
| Die Height | mm | 650~850 |
| Slide Adjust | mm | 200~350 |
| Slide min .size (LRxFB) | mm | 2450 x 1500 |
| Rotation Max. SPM | spm | 50 |
| Pendulum Max. SPM | spm@150mm | 68 |
| spm@125mm | 73 | |
| spm@100mm | 78 | |
| spm@80mm | 84 | |
| Bed deflection rate | mm / mm | 1/12000 |
| Capacity | ton | 800 |
|---|---|---|
| Suspension Points | pcs. | 2 |
| Main Motor | kW | 495 |
| Stroke Length | mm | 500 |
| Rating off BDC | mm | 12.7 |
| Die Height | mm | 750~900 |
| Slide Adjust | mm | 300 |
| Slide min .size (LRxFB) | mm | 3000 x 1700 |
| Rotation Max. SPM | spm | 40 |
| Pendulum Max. SPM | spm@150mm | 71 |
| spm@125mm | 77 | |
| spm@100mm | 84 | |
| spm@80mm | 90 | |
| Bed deflection rate | mm / mm | 1/12000 |
Catalog and Specs
Catalog and Specs
Komatsu Warranty
The Komatsu Warranty
When a press is designed as a system, it should be expected to perform as a system without routine tear downs for wear items (the conventional “weak link” in our competitors’ presses.) That’s why every Komatsu Press comes with a Two Year Unconditional Warranty on anything that rolls, slides or moves – parts and labor. Unlike other manufacturers, there is no hourly limit – your press is guaranteed to perform 3 shifts a day, 7 days a week, 365 days a year. With Komatsu systems engineering it’s possible to extract the full potential from your press, and the full revenue potential from every job.
